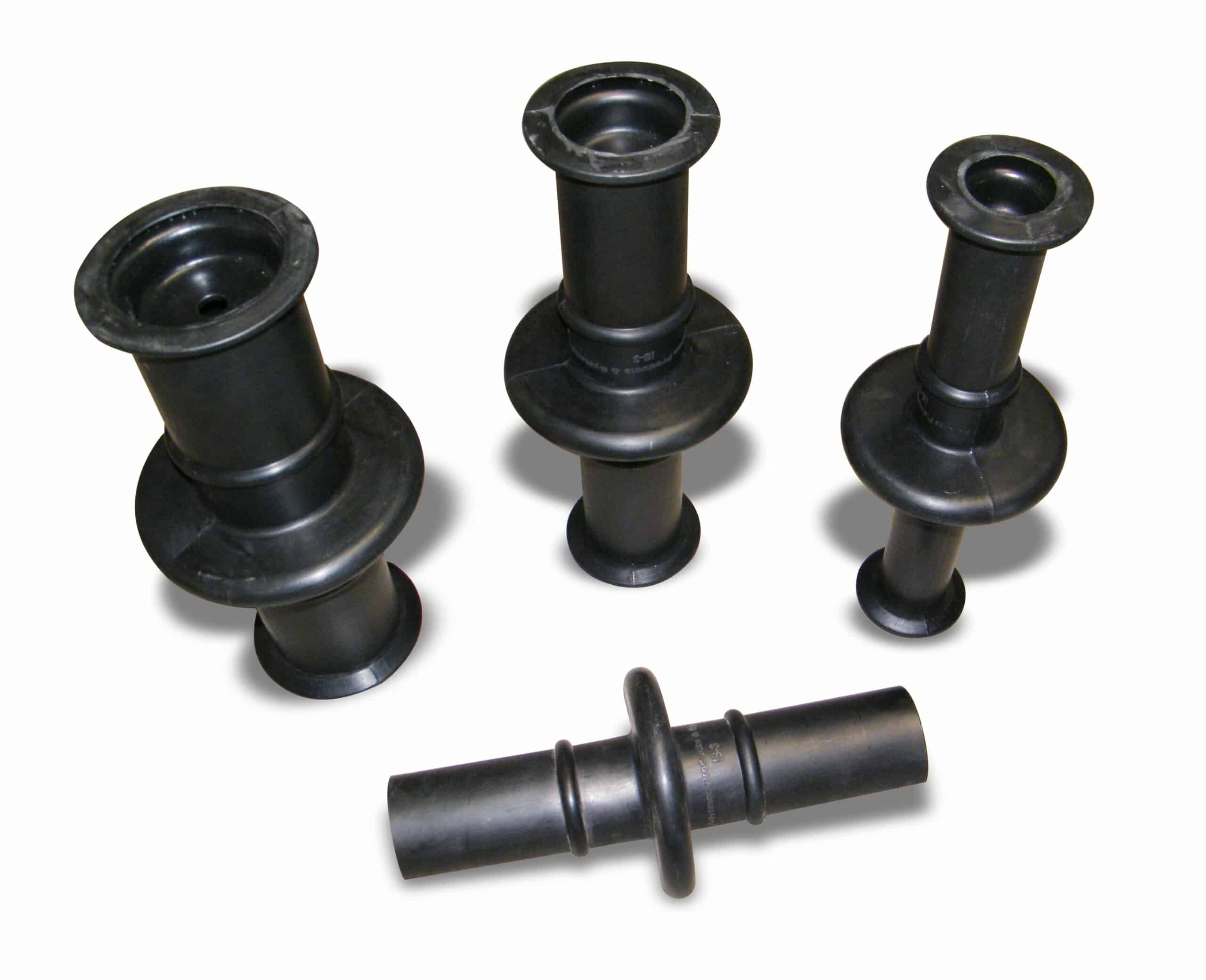

Infinity® HDPE Wall Sleeves
Infinity® wall sleeves are designed for concrete poured barriers to construct a circular penetration through walls, floors and ceilings. Infinity® HDPE wall sleeves are lightweight for an easy one-man installation. The Infinity® wall sleeve is available in 16 sizes ranging from 2”– 25” in diameter and can accommodate wall thickness up to 16”.
Infinity® wall sleeves, combined with our Innerlynx® modular mechanical seals, can withstand up to 40 psig or 92 feet of head pressure. All Infinity® wall sleeves come with two locator caps used to position and attach them to the cement form. The best way to guarantee a perfect seal is to use Infinity® wall sleeves in conjunction with Innerlynx® modular mechanical seals. They’re engineered and sized to provide a stable hole that matches dimensionally with Innerlynx® modular mechanical seals. This makes ordering quick and easy and guarantees a perfect fit every time.
Related Documents
Brochures
Infinity® Weights and Dimensions
Model | ID (in.) | ID (mm) | lbs. |
---|---|---|---|
IS-2 | 1.950 | 49.53 | 1.06 |
IS-3 | 2.890 | 73.41 | 1.68 |
IS-3.5 | 3.360 | 85.34 | 1.85 |
IS-4 | 3.970 | 100.84 | 2.08 |
IS-5 | 5.110 | 129.79 | 2.82 |
IS-6 | 6.110 | 155.19 | 3.44 |
IS-8 | 8.125 | 206.38 | 5.00 |
IS-10 | 10.090 | 256.29 | 6.41 |
IS-12 | 12.070 | 306.58 | 9.06 |
IS-14 | 13.930 | 353.82 | 10.03 |
IS-16 | 16.050 | 407.67 | 12.01 |
IS-18 | 17.220 | 437.39 | 13.67 |
IS-20 | 18.920 | 480.57 | 14.24 |
IS-22 | 20.125 | 511.18 | 15.00 |
IS-24 | 22.563 | 573.10 | 17.70 |
IS-25 | 24.750 | 628.65 | 19.13 |
